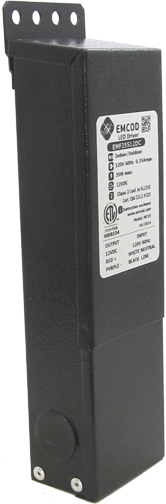

EMCOD ML10S24DC Class 2 Magnetic Outdoor Phase cut Dimmable
Black Powder Coated Steel Enclosure
Dimensions H = 7, W = 2.11, D = 1.54
Electrical Parameters
| Input Voltage: | 120V 60Hz |
| Max. input current: | 0.11A at full load |
| Output voltage without load: | 28VDC |
| Output voltage fully loaded: | 23.5VDC |
| Max. Total Wattage: | 10W |
| Max. Output Current: | 0.4A |
| Efficiency: | 83% |
